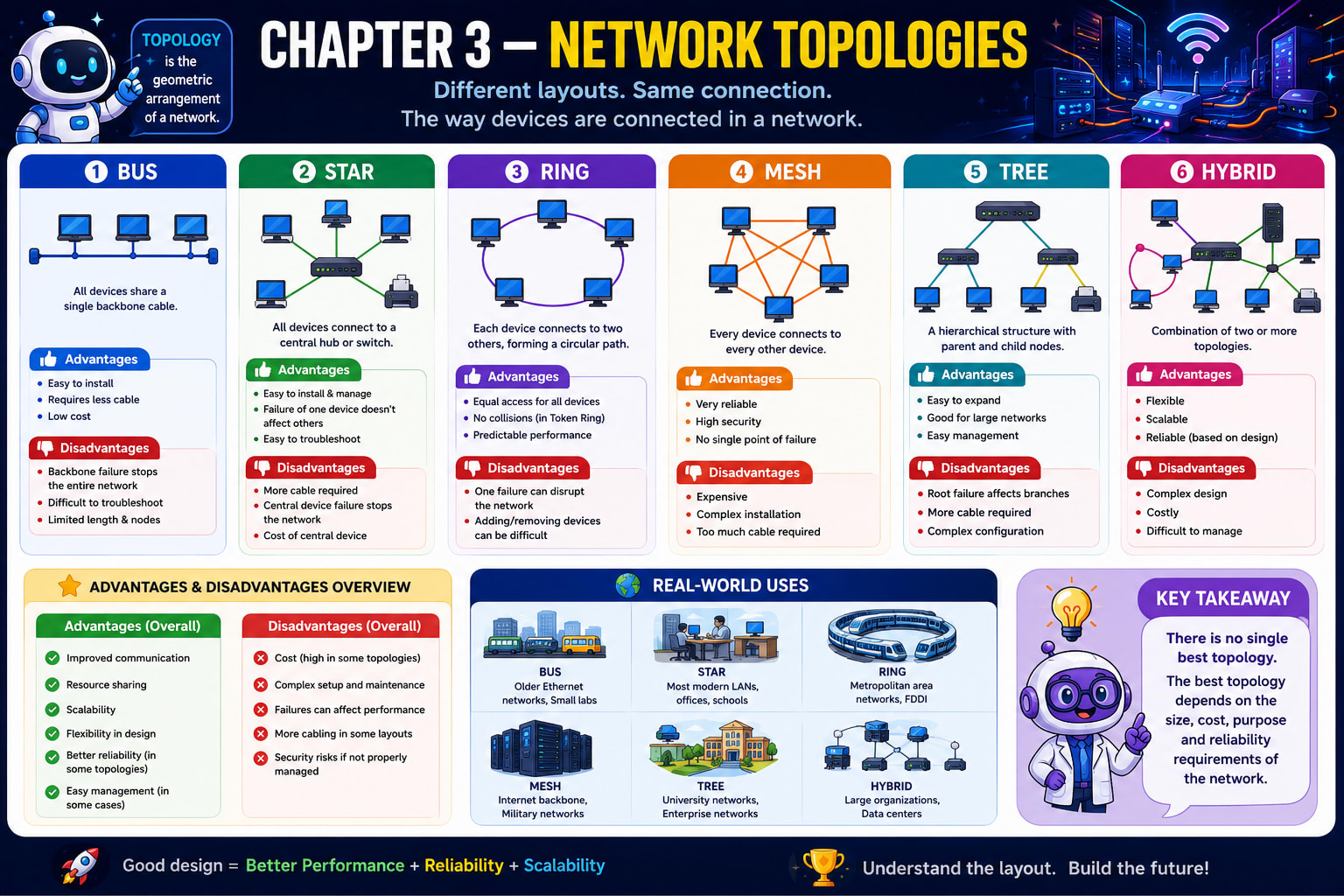

Chapter 3 - Network Topologies

1. Same Devices, Completely Different Arrangements

Imagine three colleges, each with 20 computers, one switch, and identical cables. On paper, all three networks are "the same" — same devices, same purpose, same number of connections needed. Yet one college wires its computers in a single line, one wires them all to a central hub, and one connects every single computer to every other computer directly.

Are these three networks the same? Not even close. One will collapse the moment its main cable is cut. One will keep running fine even if several devices fail. One will be blazing reliable but painfully expensive to build. Same devices, same goal — wildly different behavior, all because of how they were physically laid out.

That difference has a name: topology.

2. Why the "Shape" of a Network Matters

In Chapter 1, you learned about the devices in a network — routers, switches, firewalls. In Chapter 2, you learned about the scale of networks — PAN, LAN, MAN, WAN. But neither of those chapters answered a very practical question: once you have your devices and know your network's size, how do you actually arrange the connections between them?

This matters because the arrangement decides real-world outcomes: How much cable will you need? What happens if one device fails — does the whole network go down, or just that device? How easy is it to add a new device later? How much does it cost to build? These aren't abstract concerns — they're exactly the kind of decisions network engineers make every single day. That's why this idea deserves its own chapter: it gives you a toolkit of different "shapes" a network can take, each with its own trade-offs.

3. Definition: What Is a Network Topology?

Here's the simplest way to say it:

Topology is the geometric arrangement of a network.

Let's unpack this simple but powerful sentence:

• "Geometric arrangement" — This is about the physical or logical layout — literally the shape you'd draw if you sketched out how devices connect to each other.

• "Of a network" — This applies to any network, whether it's a small LAN in a lab or a massive WAN spanning countries.

In short: topology isn't about what devices are used — it's about how those devices are connected together. There are six major topologies worth knowing: Bus, Star, Ring, Mesh, Tree, and Hybrid. Let's walk through each one in turn.

4. Six Topologies, One at a Time

4.1 Bus Topology

How it looks: Three or more computers connected in a single straight line, all attached to one shared horizontal cable — the "backbone."

Definition: All devices share a single backbone cable.

Advantages:

• Easy to install

• Requires less cable

• Low cost

Disadvantages:

• Backbone failure stops the entire network

• Difficult to troubleshoot

• Limited length & nodes

What's really happening: Every device taps into the same single cable, like houses along one main road. It's cheap and simple, but that single shared cable is also a single point of failure — if it breaks anywhere, every device downstream loses connectivity.

4.2 Star Topology

How it looks: Multiple computers and a printer, each connected individually to one central device (a hub/switch) in the middle.

Definition: All devices connect to a central hub or switch.

Advantages:

• Easy to install & manage

• Failure of one device doesn't affect others

• Easy to troubleshoot

Disadvantages:

• More cable required

• Central device failure stops the network

• Cost of central device

What's really happening: Instead of one shared line, every device gets its own private cable straight to the center. This isolates failures beautifully — if one computer's cable breaks, only that computer is affected. But now everything depends on the central hub — if that fails, the entire star collapses at once.

4.3 Ring Topology

How it looks: Computers arranged in a circle, each connected to exactly two neighbors, forming a continuous loop.

Definition: Each device connects to two others, forming a circular path.

Advantages:

• Equal access for all devices

• No collisions (in Token Ring)

• Predictable performance

Disadvantages:

• One failure can disrupt the network

• Adding/removing devices can be difficult

What's really happening: Data travels around the ring from device to device until it reaches its destination. Because every device gets an equal turn, performance is predictable — nobody hogs the connection. But since the path is a closed loop, a single broken link can disrupt the flow for the entire ring (unless a backup path is built in).

4.4 Mesh Topology

How it looks: Multiple computers with lines criss-crossing between nearly every pair of devices — a dense web of direct connections.

Definition: Every device connects to every other device.

Advantages:

• Very reliable

• High security

• No single point of failure

Disadvantages:

• Expensive

• Complex installation

• Too much cable required

What's really happening: This is the most "connected" topology of all — since every device has a direct line to every other device, there's no single cable or hub whose failure could take down the whole network. That reliability comes at a steep price, though: the number of cables needed grows very fast as you add more devices, making it costly and complex to install.

4.5 Tree Topology

How it looks: A hierarchical structure — two switches at a middle level, each connecting down to computers and a printer below, resembling branches of a tree.

Definition: A hierarchical structure with parent and child nodes.

Advantages:

• Easy to expand

• Good for large networks

• Easy management

Disadvantages:

• Root failure affects branches

• More cable required

• Complex configuration

What's really happening: Think of this as multiple star topologies connected together in a hierarchy — a "parent" switch connects to "child" switches, which connect to end devices. This makes it easy to expand a large network in an organized way, but it also means if a parent node near the top fails, every branch beneath it loses connectivity.

4.6 Hybrid Topology

How it looks: A mix of shapes — star-like connections to a central switch, along with ring-style and mesh-style links layered together.

Definition: Combination of two or more topologies.

Advantages:

• Flexible

• Scalable

• Reliable (based on design)

Disadvantages:

• Complex design

• Costly

• Difficult to manage

What's really happening: Real-world networks rarely stick to one pure topology — they often combine the strengths of multiple designs. A hybrid topology might use a star layout within one department and a mesh layout for critical core servers. It's flexible and scalable, but combining multiple designs also means combining their complexities.

5. Visual Simulation — Watching Data Flow Differently in Each Shape

Since each topology arranges connections differently, data doesn't just "arrive" the same way in every network. Let's simulate how a message might travel from one device to another target device in each topology:

BUS:
Computer A → shared backbone cable → travels along the line → Computer C picks it up

STAR:
Computer A → central switch → switch forwards it directly → Computer C

RING:
Computer A → next device → next device → ... → travels around the loop → Computer C

MESH:
Computer A → direct dedicated link → Computer C   (no forwarding needed)

TREE:
Computer A → child switch → parent switch → child switch → Computer C

HYBRID:
Computer A → path depends on which topologies are combined
(e.g., star segment to a switch, then a mesh link between core devices)

Notice the pattern: Bus and Ring rely on a shared path that every device is part of. Star and Tree rely on a central device doing the forwarding. Mesh skips forwarding entirely with direct links. Hybrid simply borrows whichever behavior fits the part of the network it's mimicking. Understanding how data actually moves in each shape is what makes the advantages and disadvantages make intuitive sense, rather than feeling like a list to memorize.

6. Every Topology, Explained in Depth

Let's now go through each topology the way we explained networking devices in Chapter 1: what it is, why it exists, its "job" (behavior), what happens if its weak point fails, and where it's used in real life.

6.1 Bus

What it is: A layout where all devices share one single backbone cable. Why it exists: For small, budget-conscious networks that need the simplest, cheapest possible cabling. Its "job": To carry data along a single shared line that every device can tap into. If its weak point fails: A break anywhere in the backbone stops the entire network — this is its single point of failure. Real-life use: Older Ethernet networks, small labs.

6.2 Star

What it is: A layout where all devices connect individually to one central hub or switch. Why it exists: To isolate device failures from each other while keeping management simple. Its "job": The central hub/switch receives data from any device and forwards it to the correct destination device. If its weak point fails: If the central hub or switch goes down, the entire network goes down with it — even though individual device cables are fine. Real-life use: Most modern LANs, offices, schools.

6.3 Ring

What it is: A layout where each device connects to exactly two neighbors, forming a closed loop. Why it exists: To give every device equal, predictable access to the network without needing a central controller. Its "job": To pass data around the circular path from device to device until it reaches its destination. If its weak point fails: A single break in the ring can disrupt the entire loop, since the circular path is no longer complete. Real-life use: Metropolitan area networks, FDDI.

6.4 Mesh

What it is: A layout where every device connects directly to every other device. Why it exists: For situations demanding maximum reliability and security, where no single failure should ever be allowed to take down the network.Its "job": To provide a dedicated, direct path between any two devices, so traffic never has to depend on a shared or central point. If its weak point fails: There isn't really a single weak point — that's the whole advantage — but the trade-off is the sheer expense and complexity of wiring every device to every other device. Real-life use: Internet backbone, military networks.

6.5 Tree

What it is: A hierarchical layout with parent and child nodes, like branches of a tree. Why it exists: For large networks that need to be organized and expanded in a structured, manageable way. Its "job": Parent switches manage groups of child switches and devices, creating a scalable hierarchy. If its weak point fails: If a "root" or parent node fails, every branch beneath it loses connectivity — the higher up the failure, the bigger the impact. Real-life use: University networks, enterprise networks.

6.6 Hybrid

What it is: A network built by combining two or more topologies together. Why it exists: Because real organizations often have different needs in different parts of their network — no single pure topology fits every requirement. Its "job": To let each section of the network use whichever topology best suits its specific needs, while still functioning as one connected system. If its weak point fails: Depends entirely on the design — reliability is "based on design," meaning a poorly planned hybrid can inherit the weaknesses of its component topologies. Real-life use: Large organizations, data centers.

7. Where This Shows Up in Real Life

Here's where each topology tends to show up in practice:

• Bus — Older Ethernet networks, small labs.

• Star — Most modern LANs, offices, schools.

• Ring — Metropolitan area networks, FDDI.

• Mesh — Internet backbone, military networks.

• Tree — University networks, enterprise networks.

• Hybrid — Large organizations, data centers.

Notice how this connects back to Chapter 2: a MAN you learned about earlier might physically be built using a ringtopology, and a CAN at a university is likely to use a tree topology to organize its departments, library, and hostels in a structured hierarchy. Topology is the shape; PAN/LAN/MAN/WAN/SAN/CAN was the scale — together they describe a complete picture of a network.

8. Advantages & Disadvantages Overview

Beyond the topology-specific pros and cons, it's worth stepping back and looking at the overall advantages and disadvantages that apply across different topology choices:

Advantages (Overall):

• Improved communication

• Resource sharing

• Scalability

• Flexibility in design

• Better reliability (in some topologies)

• Easy management (in some cases)

Disadvantages (Overall):

• Cost (high in some topologies)

• Complex setup and maintenance

• Failures can affect performance

• More cabling in some layouts

• Security risks if not properly managed

Notice the recurring qualifiers — "in some topologies," "in some cases" — this is a reminder that no topology gets every advantage for free. Each one is a trade-off, and the "right" choice always depends on your specific priorities.

9. Common Beginner Mistakes

• Assuming Mesh is always the "best" topology. It's true that mesh offers no single point of failure and high security — but it's also the most expensive and complex to install. "Most reliable" doesn't mean "best for every situation."

• Confusing Star and Tree. Both use a central connecting device, which makes them look similar. The key difference: a star has one central hub with all devices connected directly to it, while a tree has multiple levels of hubs/switches in a hierarchy — a tree is essentially several stars connected together.

• Thinking Ring topology has no single point of failure just because it's a "loop." Beginners often assume a circular shape means built-in redundancy, but a basic ring topology can still be disrupted by a single break unless a backup mechanism is specifically added.

• Believing Hybrid always means "more reliable." Since hybrid combines multiple topologies, students sometimes assume it automatically inherits only the advantages. In reality, its reliability is "based on design" — a badly planned hybrid can also inherit weaknesses.

• Overlooking that Bus is now mostly historical. Many learners assume Bus is still common in modern networks. In practice it's largely been replaced by Star topology in modern LANs, and today shows up mostly in older Ethernet setups and small labs.

10. Interview & Exam Tips

• "Define network topology." Say it simply: "Topology is the geometric arrangement of a network — the way devices are connected."

• "Which topology has no single point of failure?" Answer: Mesh — because every device connects directly to every other device, there's no central point whose failure would bring down the network. Mention the trade-off: high cost and complex installation.

• "Compare Star and Bus topology." Structure your answer around failure impact: "In Bus topology, all devices share one backbone cable, so a single break can disable the entire network. In Star topology, devices connect individually to a central hub, so one device's failure doesn't affect others — but the hub itself becomes the single point of failure."

• "Why is Tree topology good for large organizations?" Explain the hierarchy: "Tree topology organizes devices into parent-child levels, making it easy to expand and manage large networks — which is why it's common in university and enterprise networks."

• "What is a Hybrid topology, and why would you use one?" Emphasize flexibility: "A hybrid topology combines two or more topologies to get the strengths of each for different parts of a network — commonly seen in large organizations and data centers where different needs exist in different areas."

• For any "advantages and disadvantages of X topology" question, answer using the exact pros/cons pairs from a structured comparison — examiners reward precision over vague general statements.

11. Best Practices Worth Remembering

• Choose Star topology for typical offices and schools — it's the most common modern choice precisely because it balances ease of management with contained failure impact.

• Reserve Mesh topology for situations where reliability and security truly justify the cost — like internet backbones or military-grade networks — not for everyday LANs.

• Use Tree topology when you expect a network to grow significantly over time, since its hierarchical design supports easy expansion.

• If your organization has genuinely different needs across departments, consider a Hybrid approach rather than forcing one pure topology to fit everything — but plan the design carefully, since hybrid reliability depends entirely on how well it's structured.

• Avoid Bus topology for any network expected to scale or require high reliability — it's best treated as a legacy option today.

• Whatever topology you choose, remember the closing formula: Good design = Better Performance + Reliability + Scalability.

12. Try It Yourself

Using the same six topologies covered above, try this exercise:

1. Sketch a Star topology for a small office with 5 computers and 1 printer, all connecting to a central switch. Then ask: if the switch fails, what happens to the whole office?

2. Now sketch the same 5 computers using Bus topology instead — one shared backbone cable. Ask: if the cable breaks in the middle, which computers lose connectivity?

3. Take your Star network and imagine adding a second switch connected to the first, with more computers attached to it. What topology have you just created? (Hint: hierarchy, parent and child.)

4. Now imagine connecting just 4 critical servers directly to each other with a dedicated cable between every pair. What topology is this, and why would an organization accept the higher cost?

5. Finally, describe a real network you use often (your college, your office, or your home Wi-Fi setup) and guess which topology — or combination of topologies — it most likely uses.

13. Quick Revision Box

Definition: Topology = the geometric arrangement of a network — how devices are physically/logically connected.

The six topologies:

Memory trick for single points of failure: Bus = the cable, Star/Tree = the central hub/root, Ring = any single break in the loop, Mesh = practically none (that's its whole point).

Overall advantages: Improved communication, resource sharing, scalability, flexibility in design, reliability (in some), easy management (in some).

Overall disadvantages: Cost, complex setup/maintenance, failures affecting performance, more cabling in some layouts, security risks if unmanaged.

Key takeaway: There is no single best topology. The best topology depends on the size, cost, purpose, and reliability requirements of the network.

Closing formula: Good design = Better Performance + Reliability + Scalability.

14. Bringing It Back to the Big Picture

Remember those three colleges from the start of this chapter, each with identical devices but wired completely differently? You now know exactly why they'd behave so differently — one built on a fragile shared backbone (Bus), one dependent on a single central hub (Star), and one wired for maximum reliability at maximum cost (Mesh). The "shape" of a network was never a minor detail — it's one of the most important decisions in building one.

You've now covered the devices (Chapter 1), the scale (Chapter 2), and the shape (Chapter 3) of computer networks — three lenses that together explain almost everything about how a real network is designed. As you move forward, remember: there is no single best topology; the right one always depends on size, cost, purpose, and reliability needs.

In the next chapter, we'll build on this foundation and explore how data actually gets addressed and delivered across these networks — so keep this understanding of topology fresh, because every future chapter assumes you know exactly how devices are arranged and connected.
