Chapter 1 — Introduction to Computer Networks

1. A Morning That Runs on Invisible Connections

Picture your morning. You wake up, check WhatsApp on your phone, your message zips off somewhere and lands on your friend's phone in another city instantly. You open your laptop, log into your college portal to check today's timetable. Later, you stream a video, transfer money through your banking app, or jump into an online game with a friend three states away.

None of this feels magical anymore — it feels normal. But stop and ask yourself: how does a message typed on your phone in Delhi appear on a screen in Mumbai in less than a second? How does your laptop "know" where to send a banking request, and how does the bank's server know how to send the right answer back to your device and not someone else's?

The answer to all of this is one quiet hero working behind the scenes: the computer network. Every app you've ever used, every video you've streamed, every rupee you've transferred online — all of it rides on a web of connected devices passing information back and forth, second by second, without you ever noticing the plumbing.

This chapter pulls back the curtain on that plumbing.

2. From "How Does This Even Work?" to "Oh, That's Why"

Think about what would happen if your laptop and your phone had no way to talk to each other, or to the outside world. Your laptop could still calculate, still store files, still run programs — but it would be an island. No emails, no downloads, no video calls, no Google search. Every device would be self-sufficient but completely cut off, like a brilliant person stuck alone on an island with no way to send or receive a letter.

Now imagine connecting that laptop to another laptop with a simple wire. Suddenly, they can share a file. Connect a third device, then a printer, then a phone, and now you have a small community of devices that can share resources and talk to each other. Scale that up — thousands, millions, billions of devices connected together — and you get the Internet.

This is why computer networks exist: devices are powerful alone, but they become genuinely useful when they can share resources and communicate. That need — to connect, share, and communicate — is exactly what gave birth to computer networking as a field.

3. So, What Exactly Is a Computer Network?

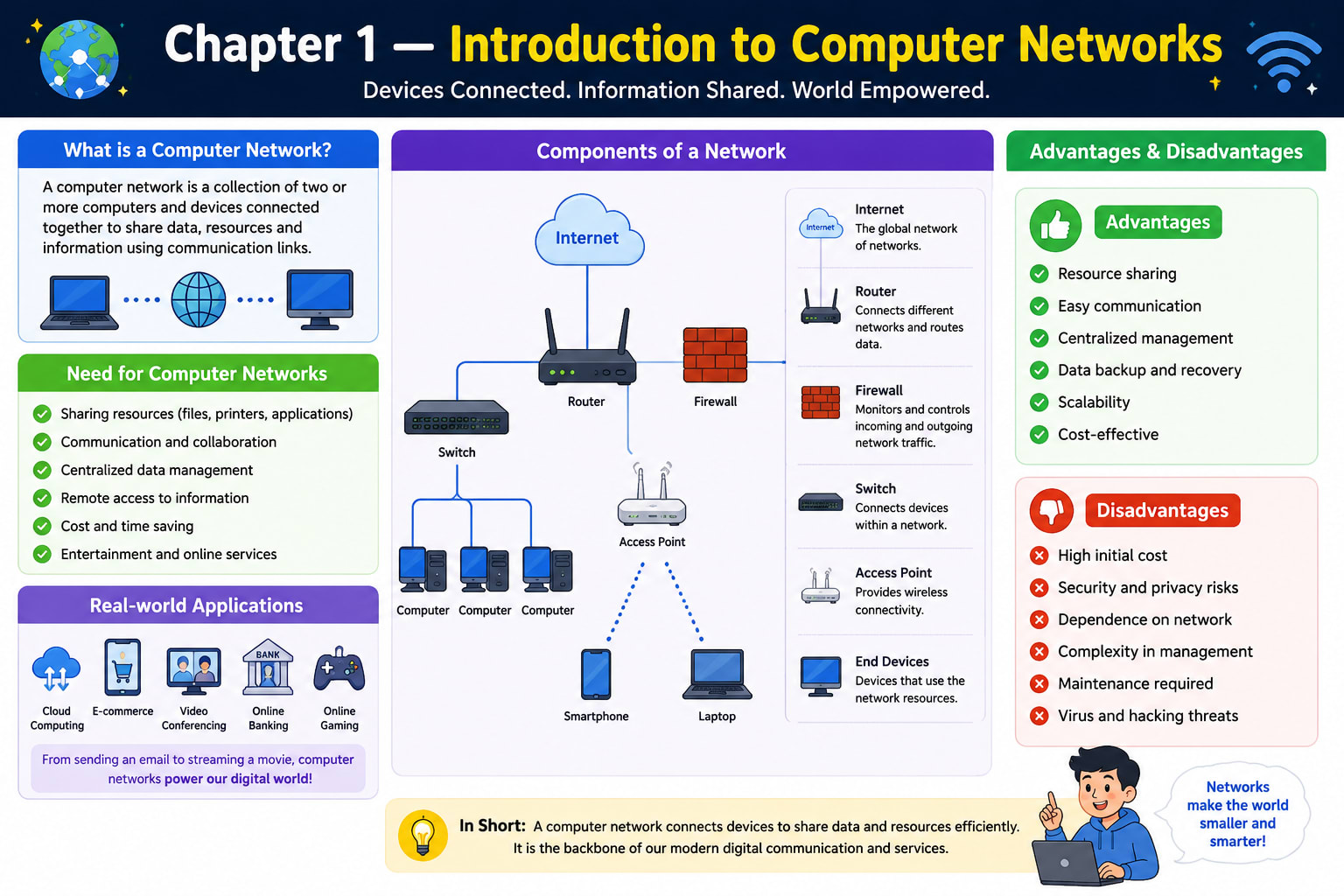

According to our infographic, the definition is refreshingly simple:

A computer network is a collection of two or more computers and devices connected together to share data, resources and information using communication links.

Let's break this definition into its building blocks:

• "Two or more computers and devices" — A network needs at least two participants. These "devices" aren't limited to computers; they include laptops, smartphones, printers, servers, and more.

• "Connected together" — There has to be some kind of link joining them, whether that's a cable or a wireless signal.

• "Share data, resources and information" — This is the purpose of the network. Data could be a message, resources could be a shared printer or storage drive, and information could be anything from a webpage to a bank statement.

• "Communication links" — This is the medium through which sharing happens — Wi-Fi, Ethernet cables, fiber optics, or mobile data.

In the infographic, this idea is shown simply: a laptop and a desktop computer connected through a globe icon (representing the network/internet), with dotted lines showing the link between them. That visual is the entire definition in one picture — devices, connected, sharing.

4. Walking Through the Infographic, Section by Section

Let's now go through the infographic exactly the way it's laid out, because each block builds on the one before it.

4.1 What Is a Computer Network? (Top Left, Blue Box)

We've already unpacked this above — it's the foundation. The laptop-to-desktop illustration with a globe in between tells you visually that a network is simply devices linked so they can exchange information.

4.2 Need for Computer Networks (Green Box)

Once you know what a network is, the natural next question is why bother building one? The infographic lists six clear reasons:

• Sharing resources (files, printers, applications) — Instead of buying a printer for every computer in an office, one shared printer connected to the network serves everyone.

• Communication and collaboration — Emails, video calls, and shared documents all depend on devices being networked.

• Centralized data management — Instead of scattered copies of data on every machine, a network lets organizations store and manage data in one controlled location.

• Remote access to information — You can check your college result or your bank balance from home because a network lets you reach servers that aren't physically near you.

• Cost and time saving — Sharing resources and centralizing data cuts down on duplicate hardware and wasted effort.

• Entertainment and online services — Streaming, gaming, and social media all exist because networks move data instantly between devices.

Notice the pattern: every single reason is really about doing more with less — less hardware, less waiting, less duplicated effort — by letting devices work together instead of alone.

4.3 Real-World Applications (Purple Box, Bottom Left)

The infographic grounds this "why" in five everyday examples: Cloud Computing, E-commerce, Video Conferencing, Online Banking, and Online Gaming. The callout beneath them sums it up perfectly: "From sending an email to streaming a movie, computer networks power our digital world." This is the bridge between the abstract idea of "sharing data" and the concrete apps you use daily — we'll expand on each of these later in the article.

4.4 Components of a Network (Center, Purple Header)

This is the heart of the infographic — an actual network diagram showing how real devices are arranged and connected. Let's simulate the layout exactly as drawn.

5. Visual Simulation — How the Network Diagram Is Built

The infographic's central diagram is arranged like a tree, starting from the Internet at the top and branching down to the everyday devices you actually use. Let's walk it top to bottom, the same way it's drawn:

                Internet
                    │
                  Router ── Firewall
                    │
        ┌───────────┼───────────────────┐
      Switch                       Access Point
        │                                │
  ┌─────┼─────┐                 ┌────────┴────────┐
Computer Computer Computer   Smartphone          Laptop

Here's what happens at each stage:

• Internet (top of the diagram): This is the cloud icon at the very top — the global network of networks. It's the ocean that all local networks eventually connect to. Nothing below this point can reach the outside world without first going through it.

• Router: Sitting just below the Internet, the router is the gateway device. It connects your local devices to the wider Internet and figures out the best path to send data along — this is called "routing."

• Firewall: Positioned right next to the router in the diagram, connected by an arrow flowing from the router. This shows its role as a checkpoint — traffic between your network and the internet passes through it to be inspected.

• Switch: Branching down from the router, the switch is responsible for connecting multiple wired devices withinthe same local network — in the diagram, it links directly to three computers.

• Computers (x3): These are wired end devices hanging off the switch — the classic desktop setup you'd see in an office, computer lab, or college network.

• Access Point: Branching down from the router on the other side, shown with wireless signal bars — this device extends Wi-Fi coverage so that devices without cables can still join the network.

• Smartphone and Laptop: Connected to the access point using dotted lines (the infographic's way of showing a wireless connection, versus the solid lines used for wired links to the switch).

Notice something important the diagram is quietly teaching you: solid lines = wired connections (switch to computers), while dotted lines = wireless connections (access point to smartphone and laptop). That's a small but meaningful detail worth remembering.

6. Every Device, Explained One at a Time

The right-hand panel of the infographic lists each component with its job description. Let's go deeper into each one, the same order shown in the infographic: Internet, Router, Firewall, Switch, Access Point, End Devices.

6.1 Internet

What it is: The global network of networks. Why it exists: No single organization owns "the internet" — it's millions of smaller networks (colleges, companies, ISPs, homes) all agreeing to connect and communicate using common rules.Its job: To be the backbone that lets any connected network reach any other connected network in the world. If it's missing: Your local devices could still talk to each other, but you'd lose access to anything outside your building — no external websites, no cloud services, no emails to the outside world. Real-life use: Every time you open a browser or app that needs data from outside your home or office, you're using the Internet.

6.2 Router

What it is: A device that connects different networks and routes data. Why it exists: Data needs a "traffic director" to decide the best path from source to destination, especially when crossing between your home network and the wider internet. Its job: To connect your local network to the Internet and forward data packets to the correct destination. If it's missing: Your devices could still talk to each other on the same local network, but none of them could reach the internet. Real-life use: The Wi-Fi box in your home or office is a router — every device you connect to your home Wi-Fi is going through it.

6.3 Firewall

What it is: A component that monitors and controls incoming and outgoing network traffic. Why it exists: Not all data trying to enter or leave a network is safe. A firewall exists to inspect traffic and block anything that looks malicious or unauthorized. Its job: To act as a security checkpoint between your trusted internal network and the untrusted outside world. If it's missing: Your network would be far more exposed to hackers, malware, and unauthorized access attempts. Real-life use: Company and college networks rely heavily on firewalls to protect sensitive data from external threats.

6.4 Switch

What it is: A device that connects devices within a network. Why it exists: A single network often needs many wired devices connected together efficiently, without every device needing a direct cable to every other device. Its job: To receive data from one device on the local network and forward it precisely to the correct device — not blast it to everyone. If it's missing: You'd need to connect devices individually with far less efficient (or impossible) wiring, and local traffic management would be lost. <br>Real-life use: Computer labs and offices use switches to wire up rows of desktop computers to the same local network.

6.5 Access Point

What it is: A device that provides wireless connectivity. Why it exists: Not every device can (or should) be wired — phones, tablets, and laptops need to join the network over the air. Its job: To broadcast a Wi-Fi signal so nearby wireless devices can connect to the network without cables. If it's missing: Any device without a physical cable connection would be unable to join the network. Real-life use: The Wi-Fi signal you connect to at a café, hostel, or office is coming from an access point.

6.6 End Devices

What it is: Devices that use the network resources — in the infographic, this includes computers, smartphones, and laptops. Why it exists: These are the actual point of use — the reason the whole network was built in the first place.Their job: To send requests into the network (like opening a webpage) and receive the responses (like the webpage loading). If it's missing: Without end devices, the network has no purpose — routers, switches, and firewalls exist purely to serve these devices. Real-life use: Literally every laptop, phone, or desktop you use to browse, message, or work is acting as an end device.

7. Where This Shows Up in Your Daily Life

The infographic's "Real-World Applications" section names five areas — and each one relies on exactly the components we just explored:

• Cloud Computing — Uploading a photo to Google Drive sends it through your router, across the Internet, to a server farm elsewhere, protected the whole way by firewalls.

• E-commerce — Placing an order on an app relies on your device connecting through Wi-Fi (access point) or data, reaching a router, and then the internet to the seller's server.

• Video Conferencing — Every word and frame in a Zoom or Google Meet call is packaged into data flowing through your switch/access point, router, and out to the internet in real time.

• Online Banking — Your transaction request travels the same path, but firewalls play an especially critical role here to keep financial data secure.

• Online Gaming — Split-second updates between you and other players demand the same router-to-internet path, just with a heavy emphasis on speed and low delay.

As the infographic itself puts it: "From sending an email to streaming a movie, computer networks power our digital world."

8. Common Beginner Mistakes

When students first learn this chapter, a few mix-ups come up again and again:

• Mixing up Router and Switch. Beginners often think these do the same job. Remember: a switch connects devices within one local network, while a router connects different networks together (including to the Internet). Memory trick: Switch = stays inside; Router = reaches outside.

• Thinking Access Point and Router are the same thing. In many homes, a single box does both jobs, which causes confusion. But conceptually, the router routes data between networks, while the access point just provides the wireless signal. In the infographic they're shown as two separate devices for exactly this reason.

• Assuming Firewall is a physical wall. It's not a device that blocks people physically — it's a security checkpoint (hardware or software) that inspects and filters data traffic.

• Confusing "Internet" with "computer network." The Internet is just one (very large) example of a computer network — the "network of networks." Every home Wi-Fi setup is also a computer network, just a much smaller one.

9. Interview & Exam Tips

Based on the notes and callouts in the infographic, here's how to answer confidently if asked about this chapter:

• "Define a computer network." Give the exact definition, then add one line of purpose: "A computer network is a collection of two or more devices connected to share data, resources, and information using communication links — it exists so devices can collaborate rather than work in isolation."

• "What is the difference between a router and a switch?" State it in one line each: "A switch connects devices within a single network; a router connects separate networks together, including connecting a local network to the Internet."

• "Why do we need a firewall if we already have a router?" Explain that the router's job is to move data along the best path, while the firewall's job is to inspect and filter that data for security — two different responsibilities.

• "List the advantages and disadvantages of computer networks." Structure your answer in two clean columns (see the revision box below) rather than a jumbled list — examiners reward organized answers.

• "Give real-world applications of computer networks." Don't just name apps — briefly explain how they use a network (e.g., "Online banking uses networks to securely send transaction requests from your device to the bank's server through the Internet").

10. Best Practices Worth Remembering

• When setting up a home or office network, always place a firewall between your local devices and the internet — don't treat it as optional.

• Use a switch for devices that can be wired (like desktops in a lab) since wired connections are typically more stable and secure than wireless.

• Use an access point to extend Wi-Fi coverage in larger spaces rather than relying on one weak signal from a single router.

• Keep firmware on routers, switches, and access points updated — this directly relates to the infographic's disadvantage of "Security and privacy risks."

• Plan for scalability from the start — the infographic lists scalability as an advantage, but only networks that are properly designed can actually grow smoothly.

11. Try It Yourself

Using the same diagram from the infographic, try this small exercise:

Imagine your college has 3 computer labs, a Wi-Fi zone for students, and needs internet access for all of it.

1. Draw the diagram: start with the Internet at the top, connect it to a Router, and connect a Firewall to the router.

2. Below the router, add a Switch connecting to the desktop computers in one lab.

3. Also below the router, add an Access Point that lets students connect their Smartphones and Laptops wirelessly.

4. Now answer: If the firewall failed, what specific risk would the college network face? And: If only the switch failed, which devices would lose connectivity — the wired lab computers, the wireless devices, or both?

(Answer to check yourself: A failed firewall exposes the network to unmonitored, potentially malicious traffic. A failed switch would disconnect only the wired lab computers — wireless devices connected via the access point would be unaffected, since they don't depend on the switch.)

12. Quick Revision Box

Definition: A computer network = 2+ devices connected together to share data, resources, and information using communication links.

Why networks exist: Resource sharing, communication, centralized data management, remote access, cost/time saving, entertainment.

Key devices (in flow order):

Connection types in the diagram: Solid lines = wired (switch to computers); dotted lines = wireless (access point to smartphone/laptop).

Advantages: Resource sharing, easy communication, centralized management, data backup and recovery, scalability, cost-effective.

Disadvantages: High initial cost, security/privacy risks, dependence on the network, complexity in management, maintenance required, virus and hacking threats.

Real-world uses: Cloud computing, e-commerce, video conferencing, online banking, online gaming.

Interview one-liner: "A computer network connects devices to share data and resources efficiently — it's the backbone of modern digital communication and services."

13. Bringing It Back to Your Morning

Remember that WhatsApp message, that video call, that online payment from the start of this chapter? Now you know exactly what made each one possible: your device reaching an access point or switch, passing through a router, being checked by a firewall, and riding out onto the Internet to reach a server somewhere else in the world — and the response following the exact same path back to you.

What felt like invisible magic is now a diagram you can draw and explain, device by device. As the infographic's mascot puts it: "Networks make the world smaller and smarter." You now understand exactly why.

In the next chapter, we'll build on this foundation and dig deeper into the types of computer networks — so keep this diagram fresh in your mind, because everything from here connects back to it.
